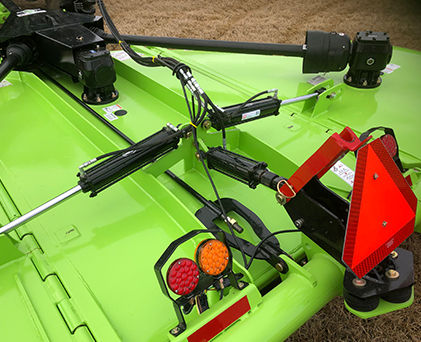

SCHULTE GX-150 Rotary Cutter

This 15' flex-wing rotary mower is built for durability, clean cutting, and maximum productivity. Its 10-gauge continuously welded domed deck sheds debris and prevents water buildup, while the heavy-duty four-gearbox drive system, CV shaft, and independent slip clutches provide smooth, reliable power and protection. Schulte Super Suction Blades, a deep 13⅝" deck, high blade-tip speeds, and up to 90° flex-wing capability deliver a fast, clean cut across tough conditions.

Cutting Width: 15’ (4.57m)
Overall Width: 15.8’ (4.83m)
Overall Length: 16.8’ (5.13m)
Cutting Height: 1.75”-16.75” (45mm-425mm)
Transport Width: 93” (2.36m)
Transport Height: 84” (2.13m)
Weight: 5,050lbs (2291kg)
Hitch Weight: 1,520lbs (689kg)
Cutting Capacity: 3.5” (89mm)
Minimum Tractor Size: 50hp (37kw)
Blade Tip Speed Center (540rpm): 16,286 ft/min (4964m/min)
Blade Tip Speed Wing (540rpm): 15,459 ft/min (4711m/min)
Blade Tip Speed Center (1000rpm): 16,390 ft/min (4996m/min)
Blade Tip Speed Wing (1000rpm): 15,708 ft/min (4788m/min)
Blade Overlap: 6.5” (165mm)
Divider Gearbox Rating: 260hp (194kw)
Center & Wing Gearbox Rating: 210hp (155kw)*
540 CV: Cat 6
1000 CV: Cat 5
Wing Drive Shafts: Cat 5
Deck Thickness: .135” (10ga or 3.4mm)
Side Skirt Depth & Thickness: 13.6” (346mm) 1/4” (6.4mm)
Wing Working Range: 25° down to 90° up
Wing Floating Range: 25° down to 30° up
